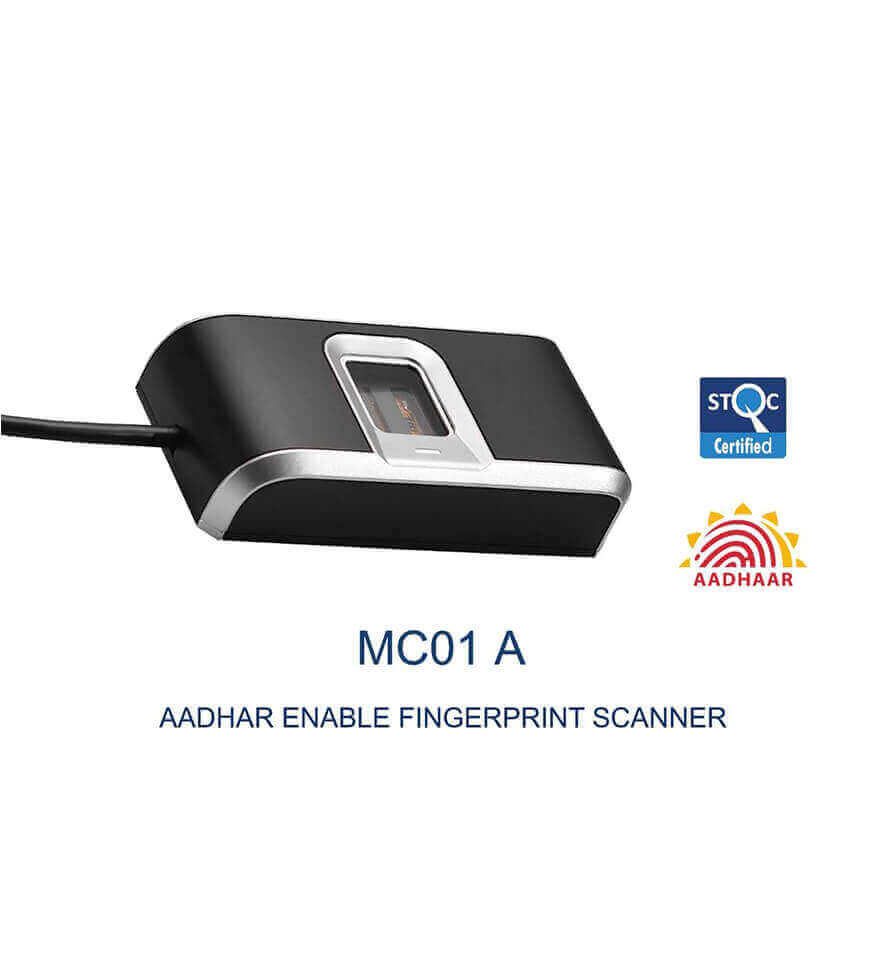

MC01A
MC01A is a high quality and ergonomic fingerprint reader. It is designed with the most compact optical sensor on the market, featuring with 500 dpi high resolution and supports ISO-19794-2, ISO19794-4 and ANSI 378 formats. The MC01 USB fingerprint reader is supported by powerful SDK with exceptionally low error rate and quick verification speed which provides you an excellent user experience!
| SPECIFICATION | ||
|---|---|---|
| Fingerprint Sensor | Optical Sensor | |
| Image Resolution | 500 ppi | |
| Image Capture Speed | < 0.1 Second | |
| Scan Area | 14mm x 18mm | |
| Image Size | 252 x 330, 82kb | |
| Template Size | 2 kb | |
| Image Format | ISO 19794-4; ANSI-378 | |
| Template Format | ISO 19794-2; ANSI-378 | |
| ESD Resisitance | Air 9kv; contact 4kv | |
| Operating Temperature | -10oC~50oC | |
| Dimensions | 82.3 mm x 42.2 mm x 20.0 mm | |
| Weight | 70 g | |
| Cable Length | 1 m | |
| Certification | SQTC Level 0 , CE, FCC, WEEE, RoHS, BIS | |
