SBI322

SBI322

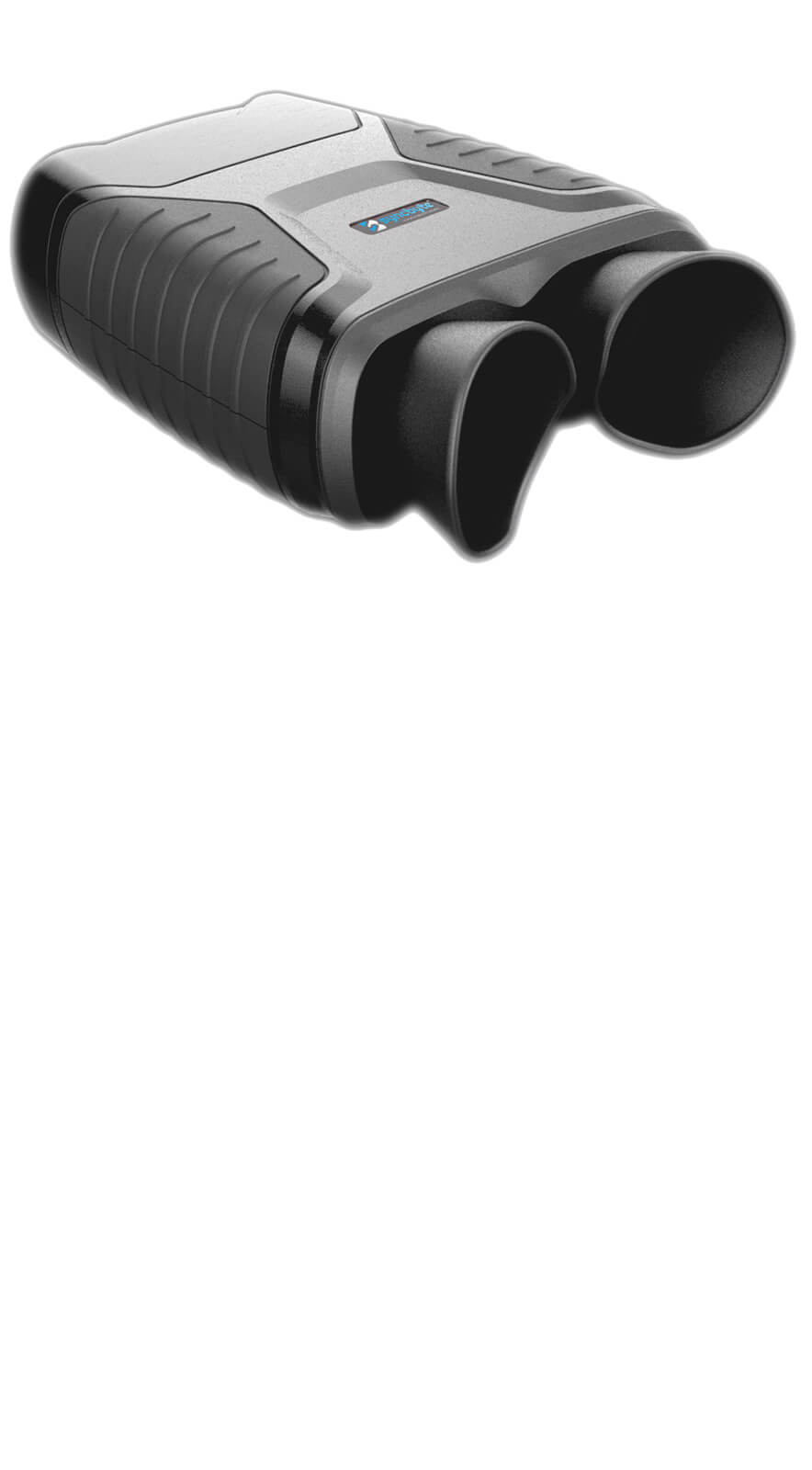

SBI322 is a binocular iris authentication device that has both iris scanning and on-device verification functions. It combines quality, speed and accuracy with ease of use. A standard SDK is provided in support of customized development.

Specification
Device Start-Up Speed <1s
Working voltage DC5V
Power Consumption: <1.25W
Dimensions (W*H*D) 148*65*207mm
Installation Plug & Play
Capture Mode Binocular Iris
Capture Speed <1s
Capture Distance 0~2cm (Eyes to Patch)
FRR: <0.1%
FAR <0.0001%
Interface USB2.0
Operation System Windows 8/7/XP, Linux (32bit/64bit)
Working Temperature -10° ~ 50° C
Working Humidity <90%
Weight 420g
 Download Brochure

FEATURES
  • 1. Easy to use with the design of binocular telescope.
  • 2. Integrated with high resolution sensor.
  • 3. Ensure the effectiveness and accuracy of the captured iris image with infrared and visible light inside the device.
  • 4. Precise localization: patch guide, real time image detection algorithm
  • 5. Real time iris image detection in PC client: detection speed is 2ms
  • 6. Software Development Kit (SDK) for customized development.
  • 7. Data Standards: ISO/IEC 19794-6 and ISO 8583
  • 8. Certifications: Eye Safety Compliance(IEC 62471), RoHS, EMC testing
APPLICATION
Iris recognition as an emerging biometric technology has outperformed many other technologies in terms of stability, accuracy, speed, non-intrusive nature, and difficulty to forge. All the above advantages have attracted security-sensitive industries to use iris recognition for authentication purposes as below
Identity management ATM, online banking, payment
Law enforcement Police, prison etc.
Public area security control and surveillance subway, train station, shopping mall etc.
Other industries identity management: social security, education, driving school etc.
Physical access control home, offices, apartment, villas etc.
